Home :: COOLING SYSTEM :: 1967-69 Ford Mustang Aluminum Radiator 3 Row 289,302,351 Cid Engine WO/AC

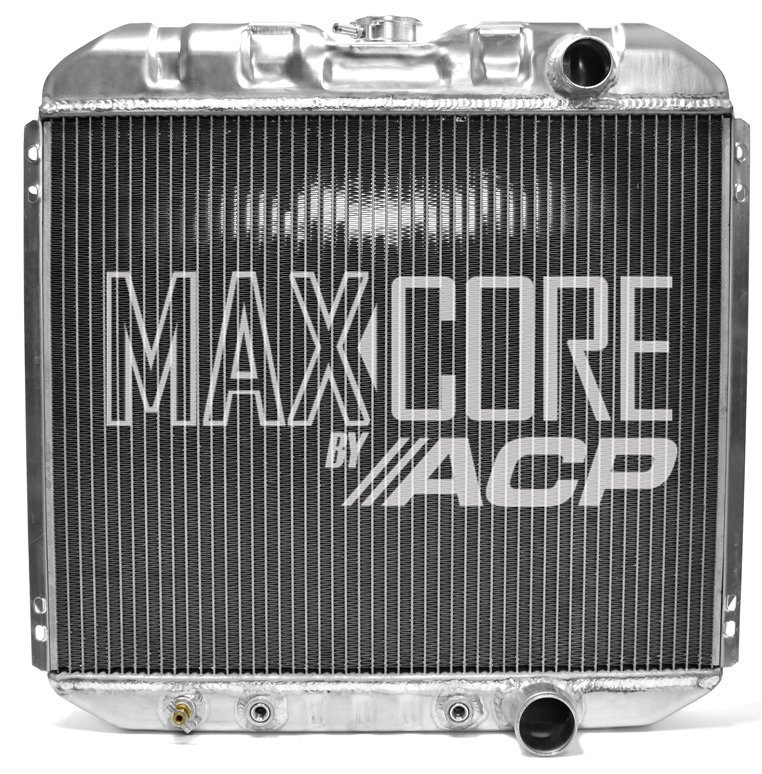

1967-69 Ford Mustang Aluminum Radiator 3 Row 289,302,351 Cid Engine WO/AC

This radiator is a brand new product being introduced by "APC" All Classic Parts. An "OE" original style radiator constructed in aluminum that looks just like the original copper unit. This radiator is a Max Core unit with 3 rows of 3/4 inch tubes for maximum cooling capacity. This radiator is correct for all 1967-69 Mustang originally equipped with the 289,302,351 CID engine. WO/AC

Specs & Details

Overall Dim (W x H x D): 20 1/2" x 21 3/8" x 3"

Core Size (W x H x D): 20" x 16 1/2" x 2 1/2"

Inlet Diameter: 1 1/2" Top Right

Outlet Diameter: 1 3/4" Bottom Right

Mounting Type + Width: Flange - 21 1/2"

Tube Size: 3/4"

Tubes per Row: 49

Tube Spacing/Fin Height: 5/8"

Fins/inch: 16

A/T Cooler: Yes

Weight: 12.5 lbs

ACP utilizes a perfect blend of premium aluminum grades that allows us to form that fantastic OE look while maintaining excellent high-pressure strength and corrosion resistance.

SKU FM-ER303

Weight 15.00 lbs

Our price: $319.95
